The Lockbox: A Design Story

Good design doesn’t overwhelm, it reveals itself slowly, through clarity, restraint, and purpose. The new Lockbox from igloohome was shaped by three forces, security, ergonomics, and cost-effective engineering. These forces ultimately converged into a product that is more capable, reliable, and more than the sum of its parts.

An Inherently Secure Form.

The first thing to notice about the Lockbox is how quiet it looks: no protrusions, no aggressive edges, no visible leverage points. That softness and seamlessness is functional and intentional. By removing seams around parting lines, reducing tolerances as much as possible, and minimizing external features, we eliminate the common pry-points.

“The chamfered perimeter edges have a purpose, they’re designed to glance impacts away from the locking mechanism, transferring energy into the wall instead of the device.”

A die cast enclosure provides structural rigidity and impact resistance required for an IK07 impact rating. From geometry to material, and manufacturing process, the Lockbox’s security is not expressed through intimidating bulk, or garish expression, but through the removal of weaknesses.

Ergonomics Shaped by Human Behavior

A user’s interaction with a lockbox often happens under non-ideal conditions or urgency. That’s why every feature is designed to reduce cognitive load and physical strain.

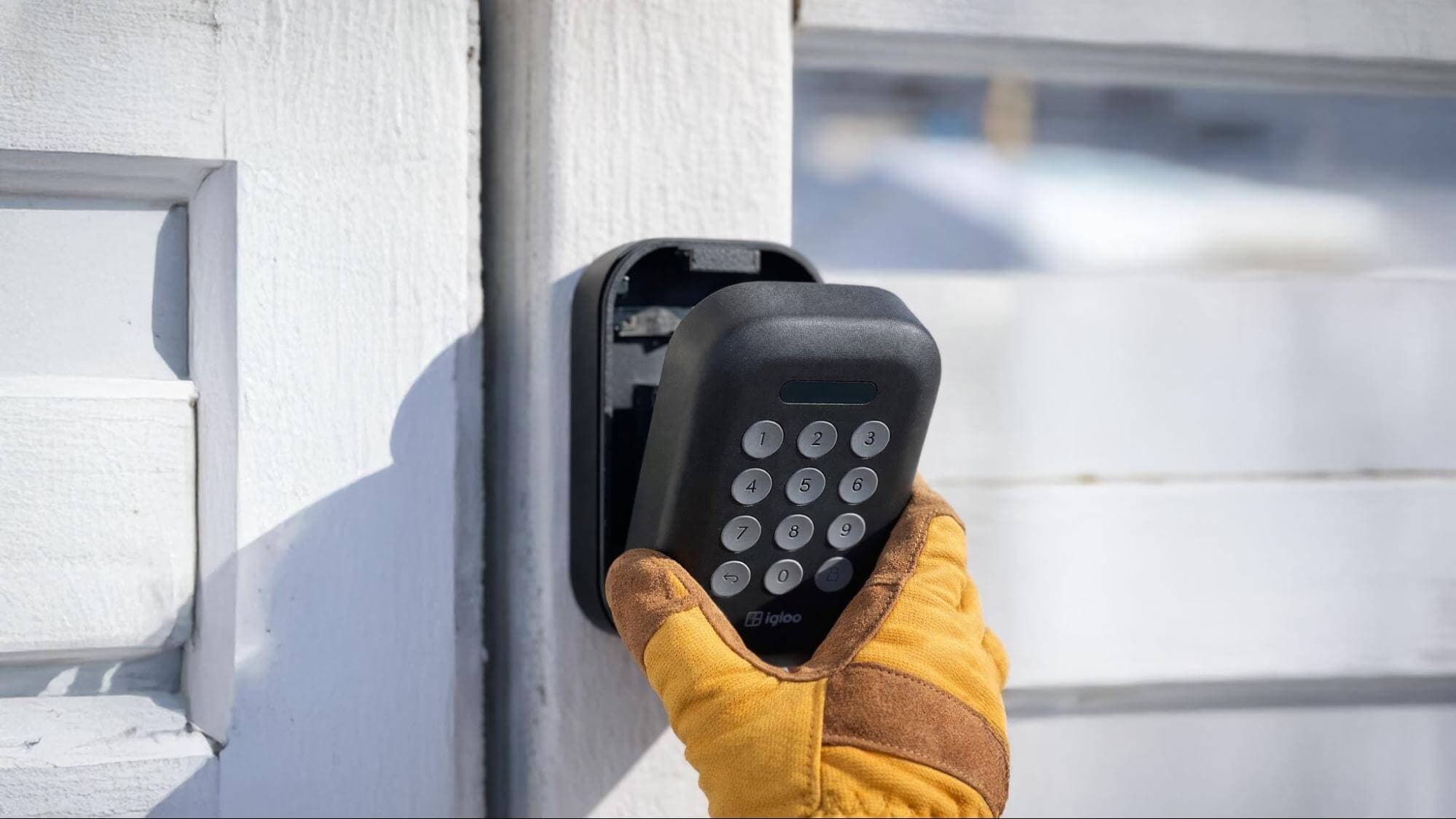

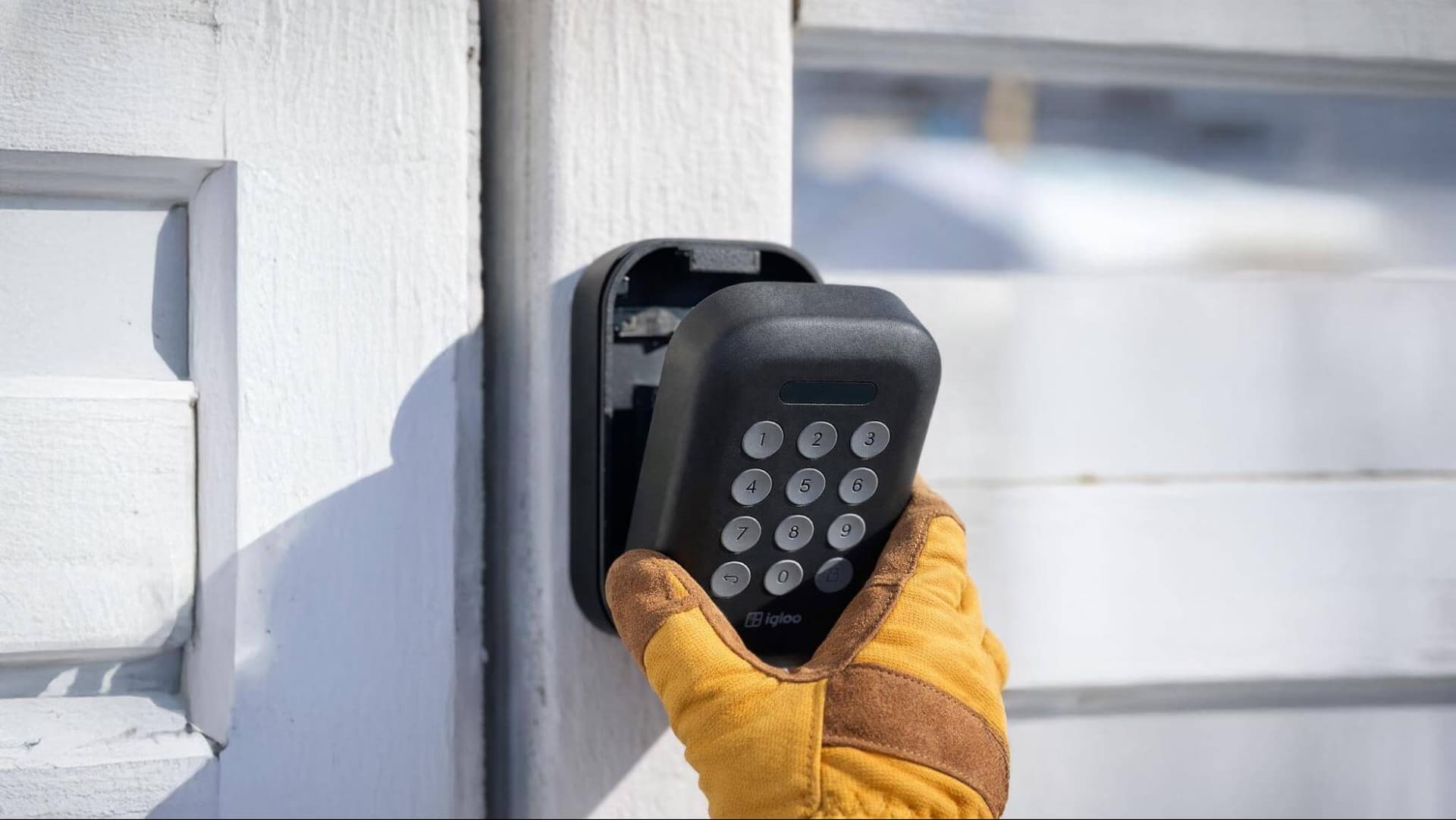

Instead of fighting gravity with a top-hinged lift up lid, the Lockbox lets the door open naturally downwards. Users don’t need to hold it open when reaching inside to place or remove items; Additionally the wide opening (greater than 90 deg) ensures that users below the height of the lockbox (wheelchair users for e.g.) can clearly see and reach what is secured inside.

The keypad with its large, concave elastomer buttons, feel natural to press while providing ample feedback to confirm a push. This is further communicated through a buzzer. The concave shape easily guides one’s fingers into place even while wearing gloves. The elastomer itself doubles as a waterproof barrier for the electronics, merging tactile comfort with weather protection. The numeral contrast was carefully calibrated so that even in harsh sunlight, the digits remain visible.

Environmental Resilience

The size and proportions of the storage space were designed to accommodate car keys, oversized fobs, long house keys and access cards.

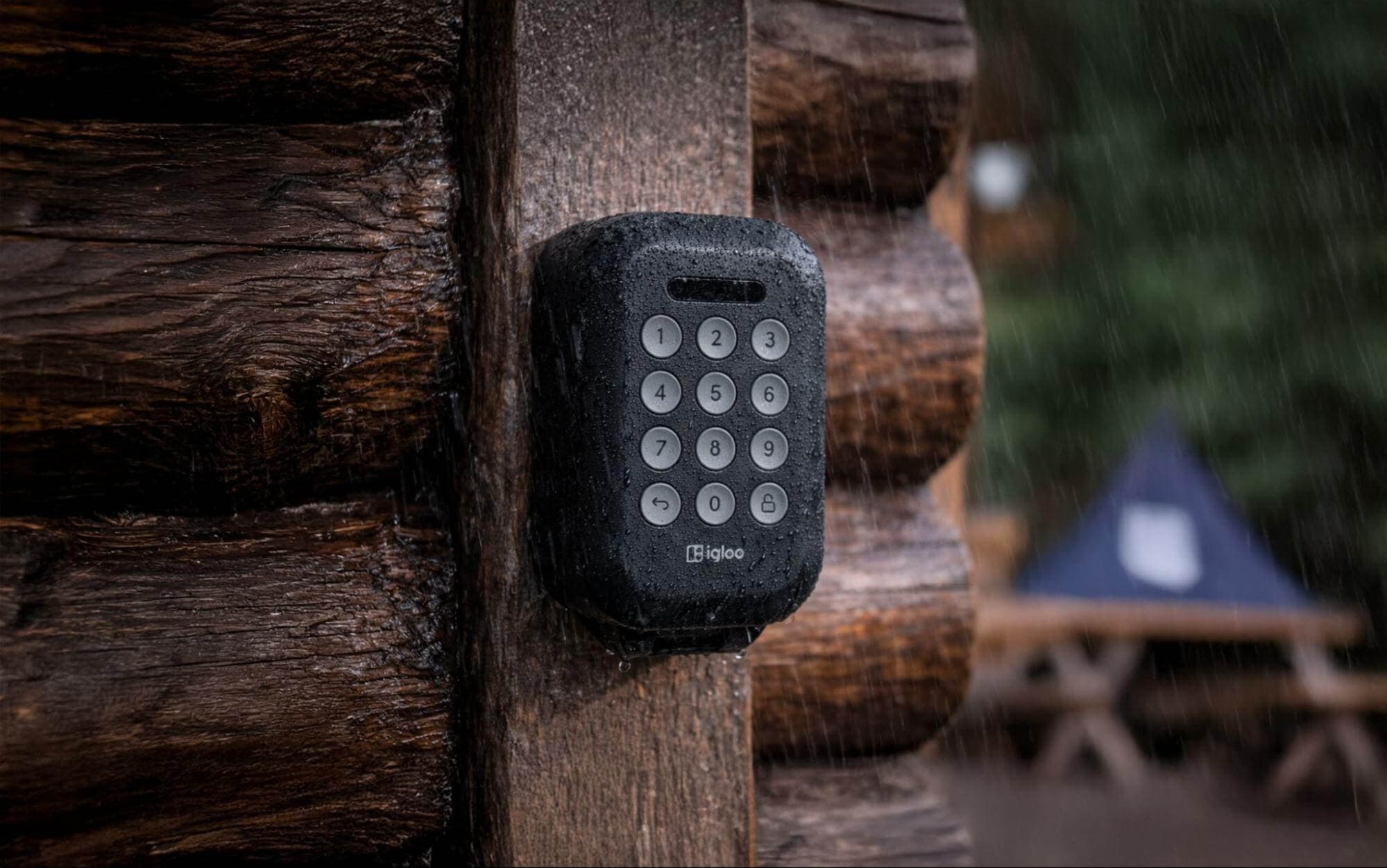

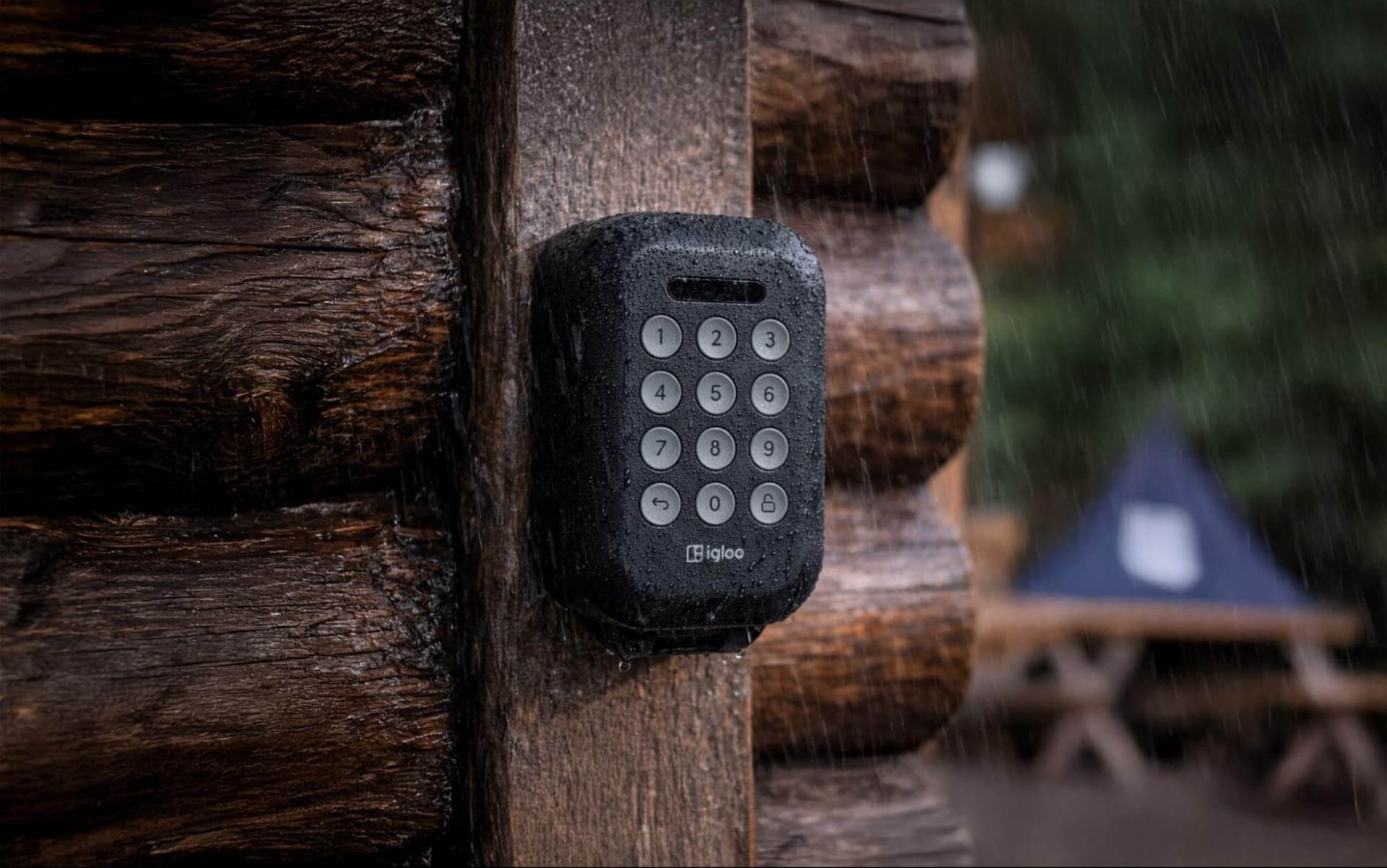

The enclosure’s rounded silhouette isn't an aesthetic flourish, it enables a uniform and reliable waterproof seal, contributing to the product’s IP66 rating. This sealing interface ensures that the internal items remain protected through rainstorms, dust, freeze/thaw cycles, and direct sunlight exposure.

Four reinforced mounting points anchor the device securely to the desired surface. In outdoor deployments where tampering or vandalism may occur, secure mounting screws are a must.

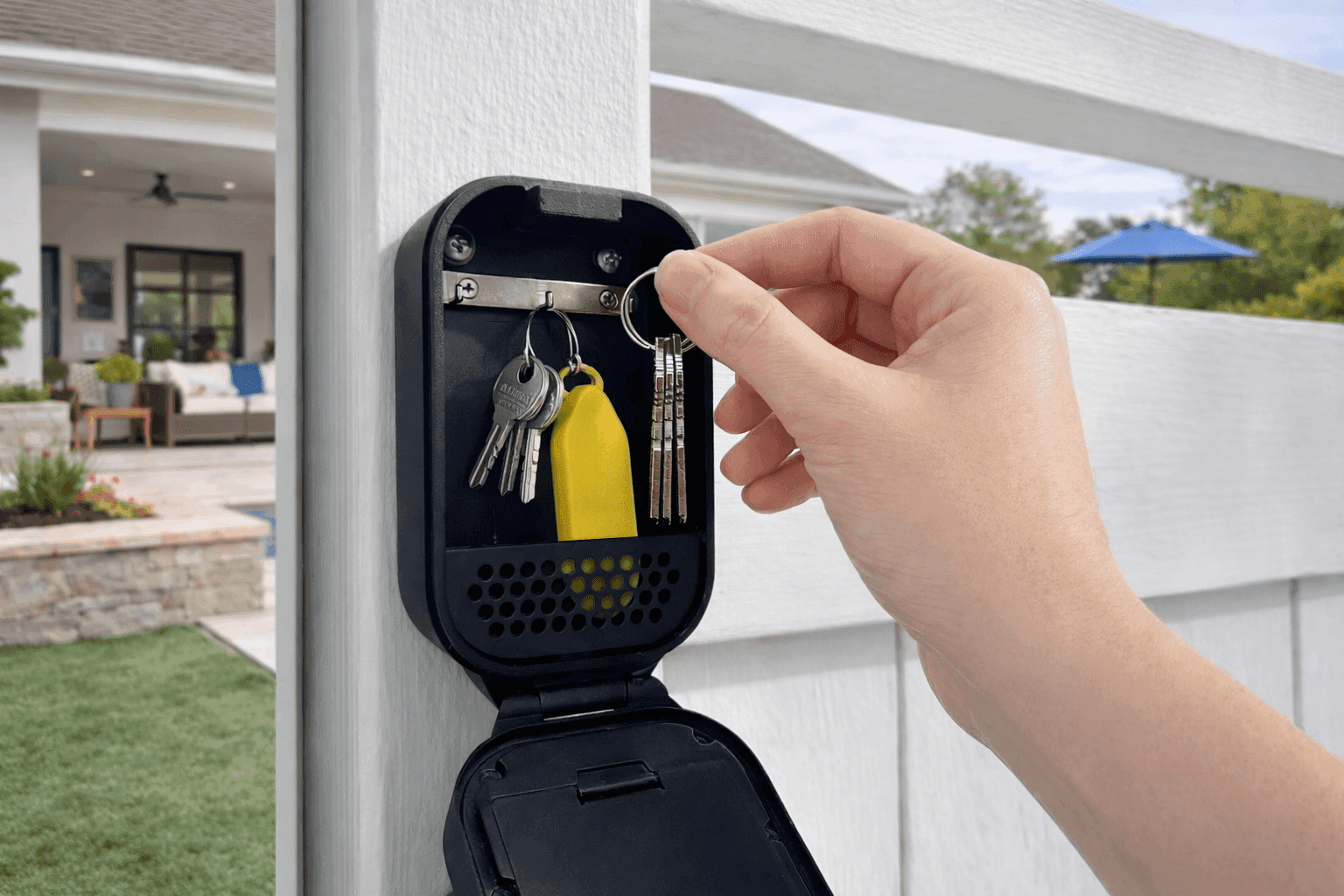

Inside, a storage guard prevents items from falling out. Internal hooks provide organization for up to 3 sets of keys.

Power, Electronics & Firmware Efficiency

Outdoor reliability starts with a reliable power system. The Lockbox uses 4 x AAA batteries for one crucial reason: users don’t want to wait for a rechargeable battery to charge and quick battery swaps keep downtime near zero. The internally secured battery cover is easily designed without the need for any specialized tools.

In emergencies, a weather protected USB-C jumpstart port is hidden inside the hinge below. Its placement shields it from tampering and weather while remaining easy to find in low-light situations.

The Lockbox’s power management approach, goes beyond reliable electronic hardware & optimized firmware. Its low power mode removes the constant drain of background wireless communication entirely, allowing the device to remain in a dormant sleep mode. Many competing products maintain periodic wireless checks that drain the battery constantly. By contrast, the igloo Lockbox, extends real-world battery life up to a year and a half.

“This is where mechanical, electrical, and software design stop being separate disciplines and start acting as one unified system to achieve power reliability.”

Tough Protection, Trusted Access.

Modernizing a lockbox doesn’t mean abandoning the dependability of traditional mechanical systems. The locking bolt and latch design was improved to be more tamper-resistant, and consistent over thousands of cycles. The device feels as solid if not more than a conventional mechanical lockbox while enhanced through digital access control.

“The Lockbox focuses on doing exactly what is required: securing keys and credentials in environments where people need reliability, protection & trust.”

The Lockbox is powered with the igloohome ecosystem out of the box. Yet it remains open for third-party integrators who want to incorporate the hardware into their own software systems via iglooAccess APIs. With smart access control, the Lockbox becomes more than a secure container. It becomes a secure storage node that scales with a business's needs while staying operationally simple.

It is a product built to reduce problems, not introduce new ones. A tool engineered to thrive in the real world.
